RJI10015,100 Ton, Electric Lifting Jack,Hydraulic Wheeled Jack
-
Model:RJI10015
Capacity:100 ton/933 KN
Stroke:330 mm/12.99 inches
Pump type:Electric pump
Weight:295 kg/650.4 lbs
Power Source:Electric Power Pack
Collapsed Height:535-759 mm
Manufacturer:SAIVS
Minimum Order:1 Piece
Customizable with special requirement
Brand Name:Replacement Enerpac's RJI10015
- RJI10018,100 Ton, Electric Lifting Jack,Hydraulic Wheeled JackRJI10015,100 Ton, Electric Lifting Jack,Hydraulic Wheeled JackRJI5020,50 Ton, Electric Lifting Jack,Hydraulic Wheeled JackRJI5013, 50 Ton, Electric Lifting Jack,Hydraulic Wheeled JackRJI Series,Electric Lifting Jack,Hydraulic Wheeled Jack
Description
- The strong and heavy-duty structure makes
- the machine have a long service life.
- Large base pad supports oil cylinder.
- Omni-directional wheels are convenient for
- transportation and placement.
- Hydraulic control check valve provides
- pressure self - locking in case of emergency.
- The cylinder and pump are easy to disassemble and can be easily used in other occasions or for maintenance.

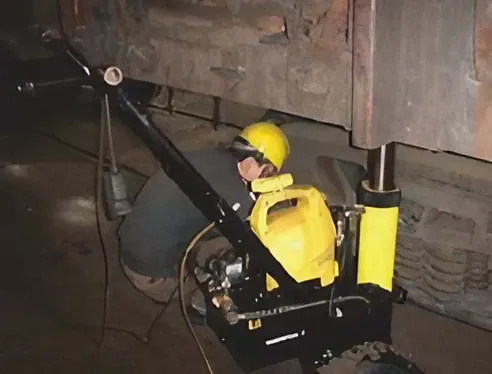

- Hydraulic car racking machine lifting train cars.
Image Gallery

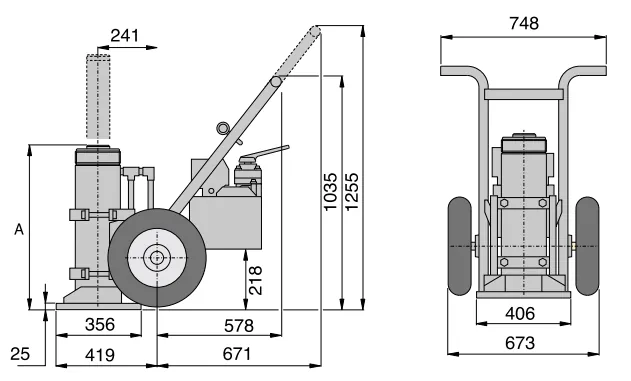

Dimensions
| Model | RJI-10015 | |
| Pump type | Electric pump | |
| Capacity ton(kN) | 100 | |
| Stroke(mm) | 330 | |
| Collapsed Height (mm) | 549 | |
| Speed load mm/sec | 0.08 | |
| Speed no-load mm/sec | 0.95 | |
| Weight(kg) | 295 | |
Series Comparison
| Pump type | Capacity ton (kN) | Stroke (mm) | Model | Collapsed Height (mm) | Speed mm/sec | (kg) | |
| load | no-load | ||||||
| Electric pump | 50 (498) | 330 | RJ|-5013 | 535 | 0.05 | 0.51 | 270 |
| 508 | RJI-5020 | 759 | 0.05 | 0.51 | 283 | ||
| 100 (933) | 330 | RJ-10015 | 549 | 0.08 | 0.95 | 295 | |
| 457 | RJ-10018 | 713 | 0.08 | 0.95 | 327 | ||
Literature
Comment
