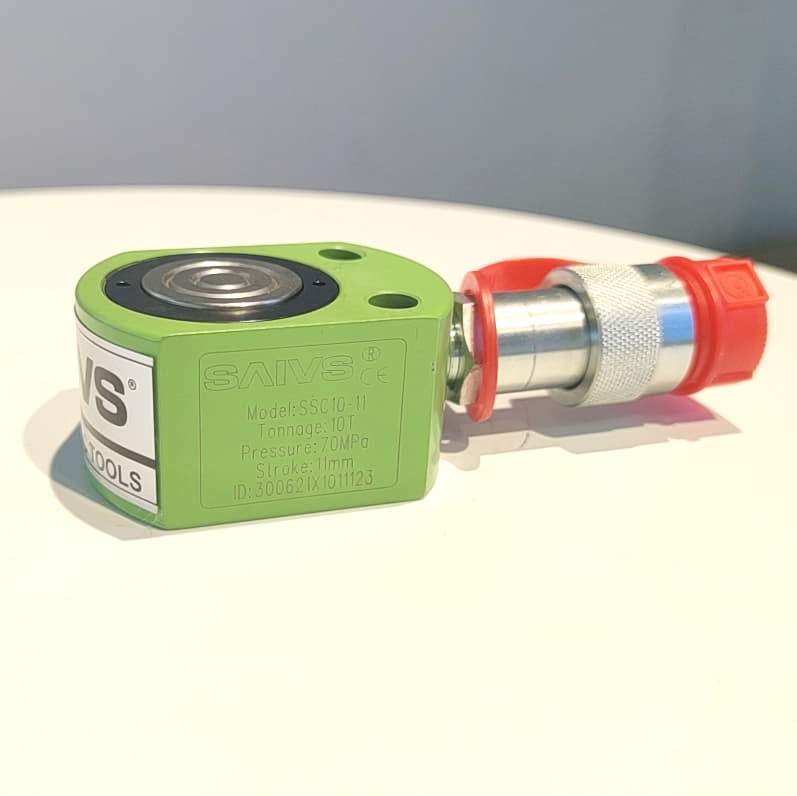

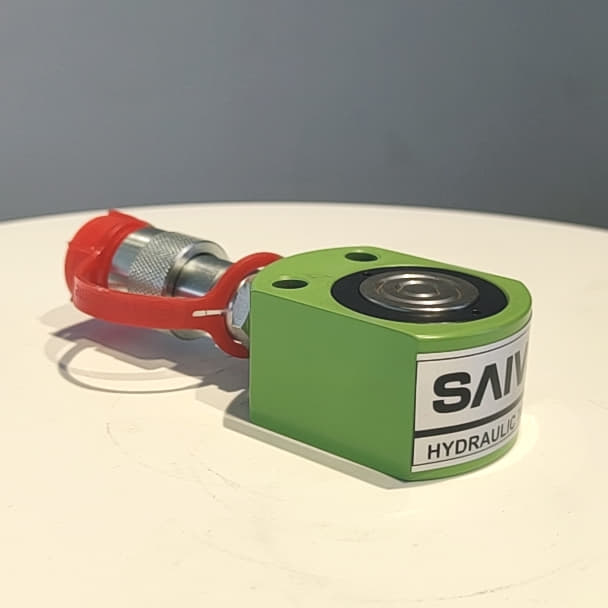

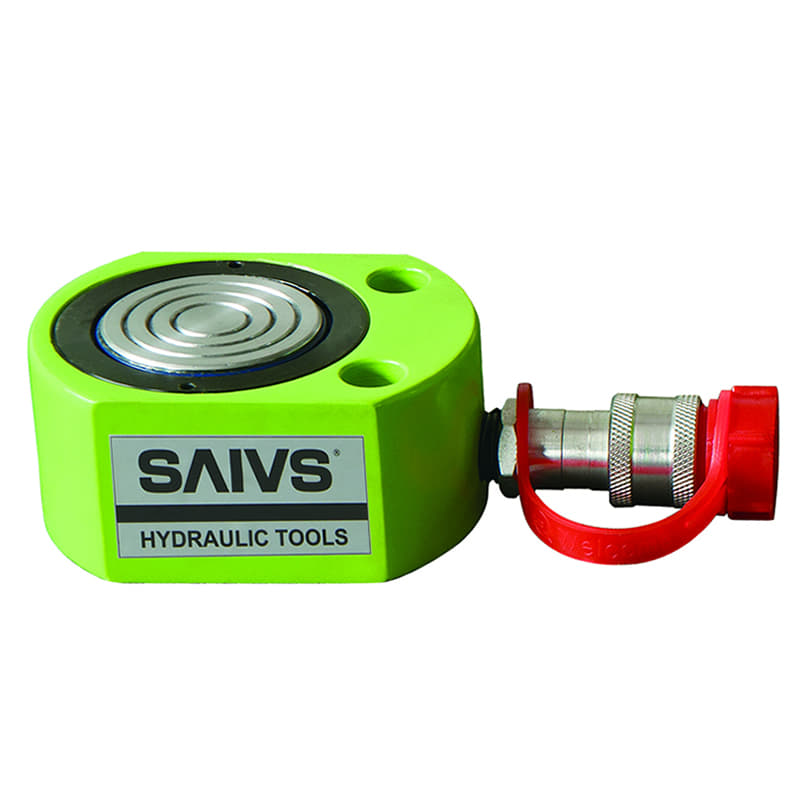

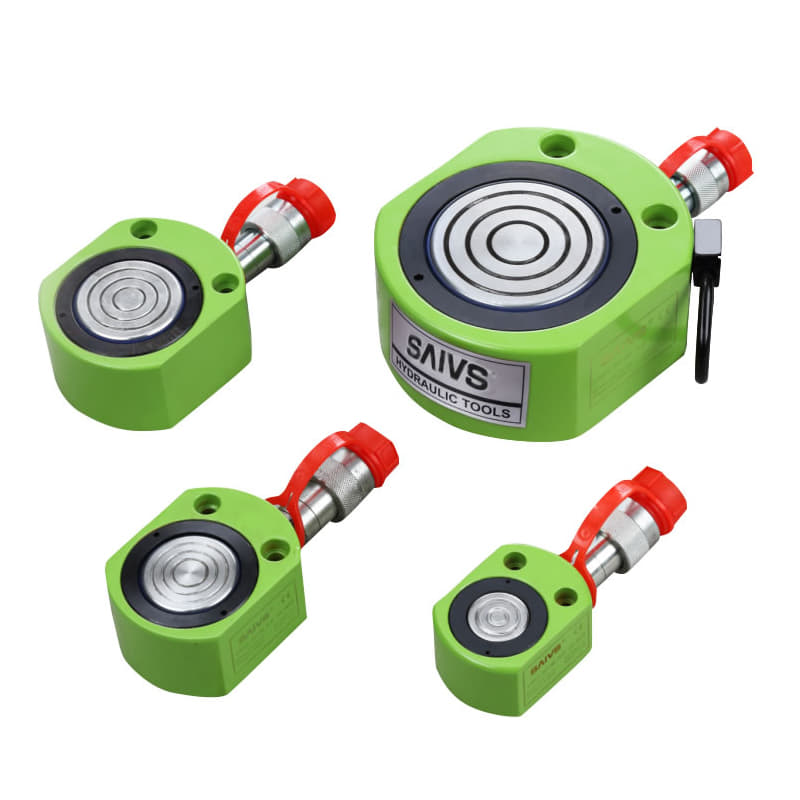

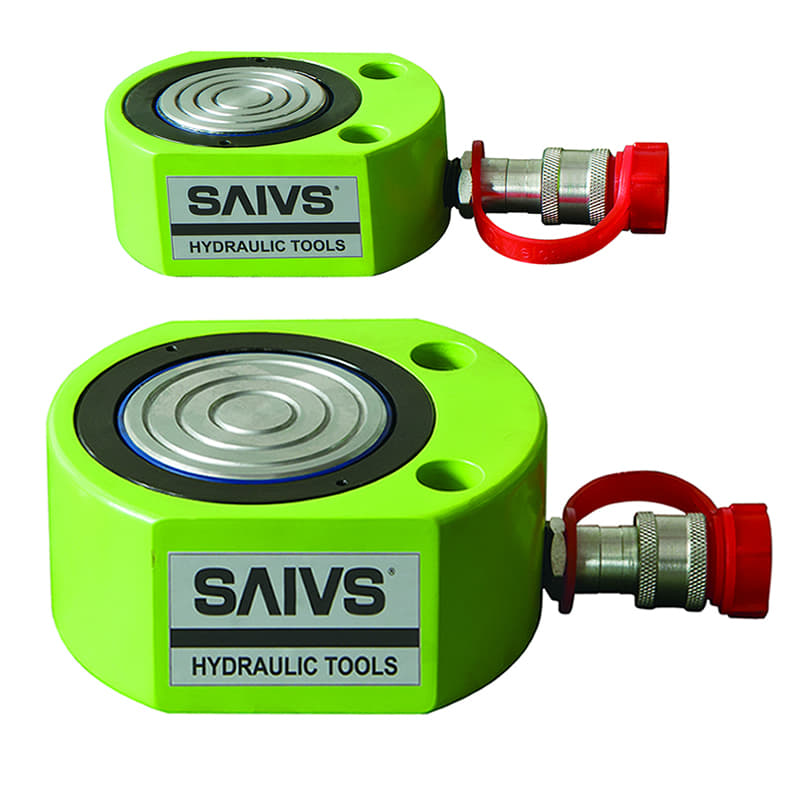

RSM Series Single-Acting Low Flat Hydraulic Ram
-
Model:RSM Series
Light Height Ultra-Thin Single Acting Hydraulic Cylinder Low Flat Hydraulic Ram
Capacity: 10-150ton
Stroke: 11-16mm
Weight:1.4-28.7KG
Oil capacity:18 - 371(cm3)
Manufacturer:SAIVS
Country of Origin:China
Max.pressure:700 Bar/10000 Psi
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RSM Series
- RSM1500, 150 ton 1386 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM1000, 100 ton 887 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM750, 75 ton 718 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM500, 50 ton 549 KN, 16mm 0.6 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM300, 30 ton 295 KN, 13mm 0.5 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM200, 20 ton 201 KN, 12mm 0.5 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM100, 10 ton 101 KN, 11mm 0.4 in Stroke, Single Acting Low Profile Hydraulic CylindersRSM Series Single-Acting Low Flat Hydraulic Ram
Description
- Model:RSM Series
- Product Line: Industrial Tools
- Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Flat design used in confined spaces.
No saddle required with grooved plunger end.
Two plunger threads on grooved plunder end for particular needs.
Special painted surface to increase corrosion resistance.
Easy carrying with handles on some models (Capacity over 75tons).
All models include quick coupling and dust cap.
Customizable with special requirement.
High pressure electric Hydraulic Cylinder is powered by high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect jack. Hydraulic cylinder can bear partial loading is 5% of rated pressure.
High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment.
It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.
- Material:CR40
- Manufacturer:SAIVS
- Country of Origin:China
- Minimum Order:1 Piece
- Customizable with special requirement
