SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set
-
Model:SWi5TI-S
Maximum Operating Pressure: 700bar/10000PSI
Maximum Spreading Force: 8.7 ton | 85.3 kN
Weight: 10.5 kg | 23.1 lbs
Maximum Spread (mm): 101
Tip Clearance(mm): 6
Power Source: Integral Hydraulic Type
Model Type: Single Wedge Integral Pump Set
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's SWi5TI-S
- SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi12/14TM 15.7 Ton Mechanical Flange Spreader SWi2025TE 26.9 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 26.9 Ton Integral Hydraulic Flange Spreader SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set
Description
Model:SWi5TI-S
Product Line: Industrial Tools
Customizable with special requirement
Set Includes
1 x SWi5TI flange spreading tool
1 x Standard Safety Block
1 x Lanyard

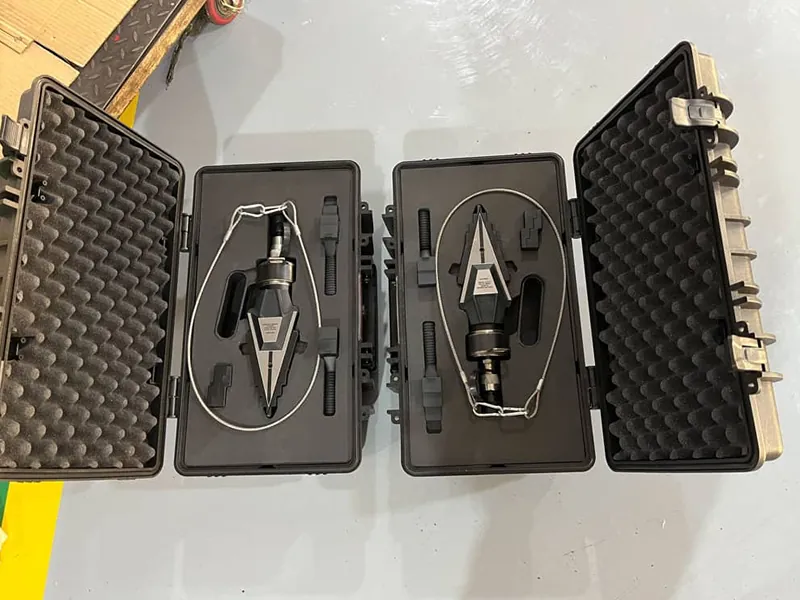

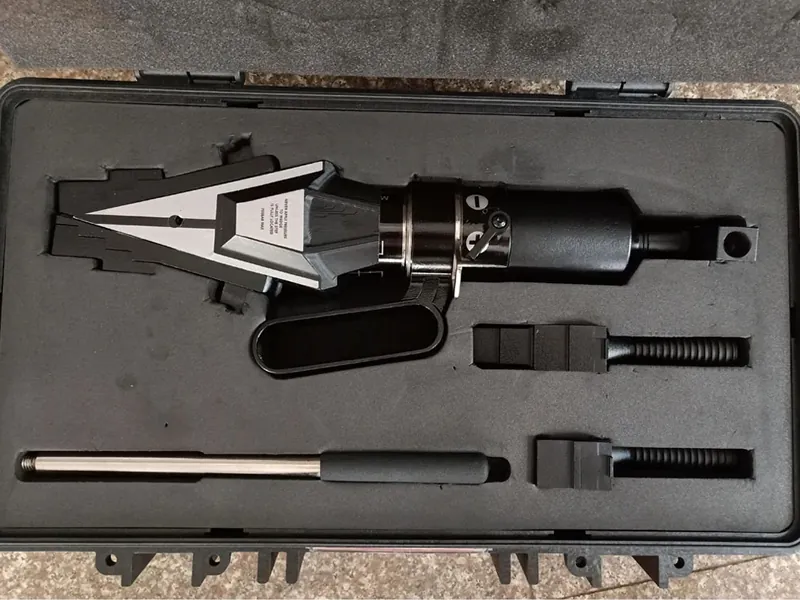

1 x Moulded Plastic Carry Case with protective foam inserts
Practical, portable and lightweight
Moulded plastic handle for comfort
Revolving handle to aid horizontal or vertical spreading
Removable handle for improved access

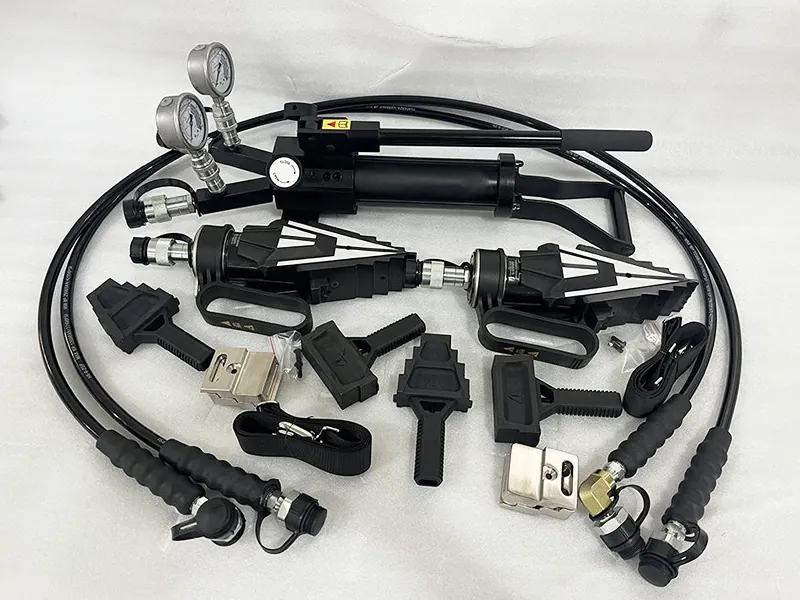

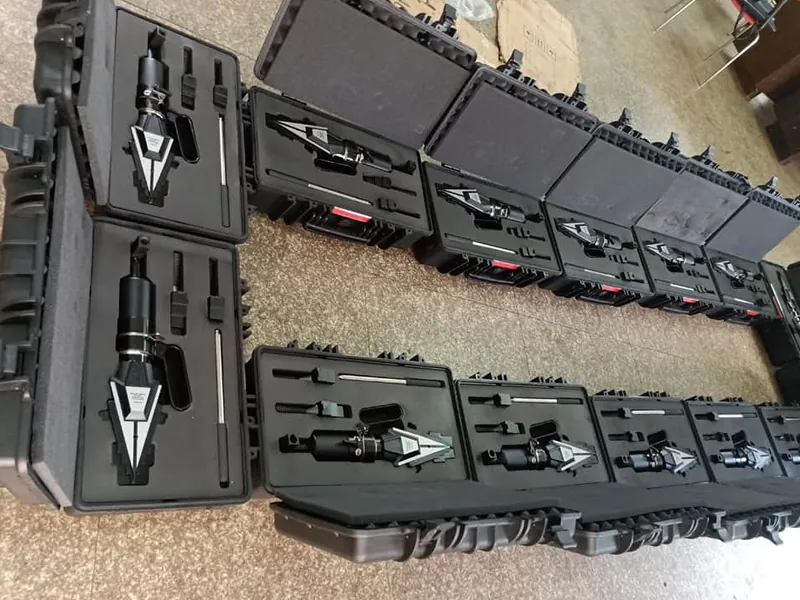

Image Gallery

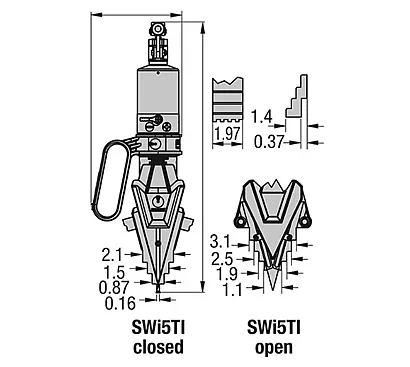

Dimensions
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force (ton) | 8.7 |
| Maximum Spread (mm) | 101 |
| Tip Clearance (mm) | 4 |
| Jaw Width(mm) | 50 |
| Power Source | Integral Hydraulic Type |
| Weight (kg) | 10.5 |
Series Comparison
| Model | Capacity/Ton | Maximum Spread/mm | Tip Clearance/mm | Jaw Width/mm | Oil Capacity/cm³ | Power | Weight/Kg |
| SWi2025TE | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 15 | 33.1 lbs |
| SWI20/25TI | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | * | Integral Hydraulic Type | 18.1 | 39.9 lbs |
| SWi2025TEMAXSPB | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 33 | 72.8 lbs |
| SWi12/14TM | 15.7 Ton| 153.8kN | 103.5 | 6 | * | * | Mechanical | 13 | 28.7 lbs |
| SWi5TI-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Integral Hydraulic Type | 10.5 | 23.1 lbs |
| SWi5TE-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Split Hydraulic Power | 8.7 | 19.2 lbs |
| SW14.5TE | 14.5 Ton| 142.2 kN | 81 | 6 | * | * | Integral Hydraulic Type | 10 | 22 lbs |
Certificate of Compliance
Literature
