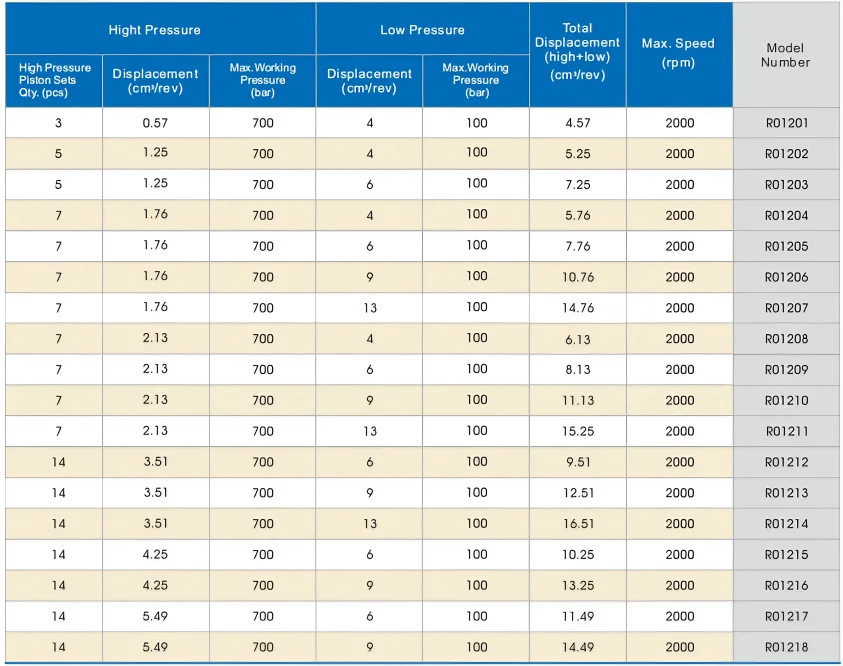

R012 Series,Pump Core Pump Head
-
R01: 0.0256-0.3350 in3 /rev
R02: 0.108-0.117 in3 / rev
R04: 0.2093-0.2392 in3 / rev
R05: 0.3710-0.4058 in3 / rev
R06：0.1117-0.1166 in3 / rev
Displacement: 4.57-14.49cm³ / rev
Max. Pressure: 700bar
Max. Speed: 2000rpm
The pump head adopts double-stage plunger pump structure design.
Application:Warehousing&distributionShipping & logisticsOil & gasAgriculture
Description
R012 Series Gear pump head
The pump head is equipped with safety valve, high and low pressure switching valve.
This Plunger Pump Head is new surplus, in excellent condition, it includes a hard steel pin but could be swapped with another type based on your requirements.
The pump head adopts plunger pump and gear pump to form a two-stage pump structure.
The pump head is equipped with a safety valve.
Displacement: 4.57-14.49cm³ / rev
Max. Pressure: 700bar
Max. Speed: 2000rpm
Features
The pump head adopts plunger pump and gear pump to form a two-stage pump structure.
The pump head is equipped with safety valve, high and low pressure switching valve.
