P84 Two Speed, Hydraulic Steel Hand Pump,Double-Acting Cylinders
-
Model:P84
Pump Type: Two Speed
Used with Cylinder:Double-Acting Cylinders
Usable Oil Capacity: 2200cm³
Max.Operating Pressure: 700 bar
Pressure Rating 1st Stage: 25bar/348.1 psi
Pressure Rating 2nd Stage:700bar/10000 psi
Oil Displacement Per Stroke 1st Stage (cm³)16.22
Oil Displacement Per Stroke 2nd Stage (cm³)2.46
Weight:13.2 kg
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Brand Name:Replacement Enerpac's P84
- SPS7-0.7 Two Speed,Single-acting Hydraulic Steel Hand Pump P80 Two Speed,Single-acting Hydraulic Steel Hand Pump P464 Two Speed,Steel Hydraulic Hand Pump, Double-Acting Cylinders P462 Two Speed, Steel Hydraulic Hand Pump Single Speed,10000 PSI,Steel Hydraulic Hand Pump Two Speed,10000 PSI,Steel Hydraulic Hand Pump SPS series hydraulic steel hand pumps
Description
Model:P84
Product Line: Industrial Tools
Customizable with special requirement
SAIVS offers high-pressure, two-speed manual hydraulic Hand Pumps in a robust,
lightweight steel design. Ideal for portability and demanding environments,
the pumps provide efficient operation with high flow for filling and high pressure for power.

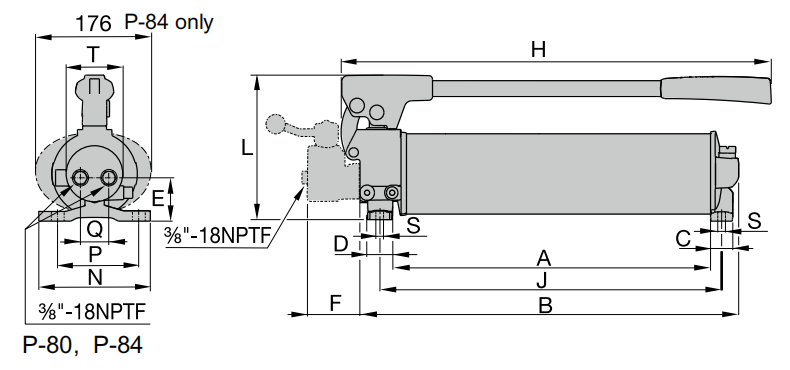

Dimensions
P84 Two Speed, Hydraulic Steel Hand Pump,Double-Acting Cylinders
| Model Number | A | B | C | D | E | F | H | J | L | M | N | P | Q | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P84 | 425 | 510 | 25 | 44 | - | 64 | 527 | 29 | 174 | 19 | 146 | 121 | 38 | 43 | 8 | 67 |
| Model Number | Pump Type | Usable Oil Capacity (cm3) | Pressure Rating (bar) | Oil Displacement per Stroke (cm3) | Max. Handle Effort (kg) | Piston Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| P84 | Double speed | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 49 | 25.4 | 13.2 |
| Model Number | Pump Type | Usable Oil Capacity (cm3) | Pressure Rating (bar) | Oil Displacement per Stroke (cm3) | Max. Handle Effort (kg) | Piston Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| P392 | Double speed | 655 | 1st stage: 25 2nd stage: 700 | 1st stage: 15 2nd stage: 2.62 | 50 | 20.6 | 5.9 |
| P80 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 47 | 25.4 | 10.9 | |
| P84 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 49 | 25.4 | 13.2 | |
| P462 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27 | |
| P464 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27.7 |
